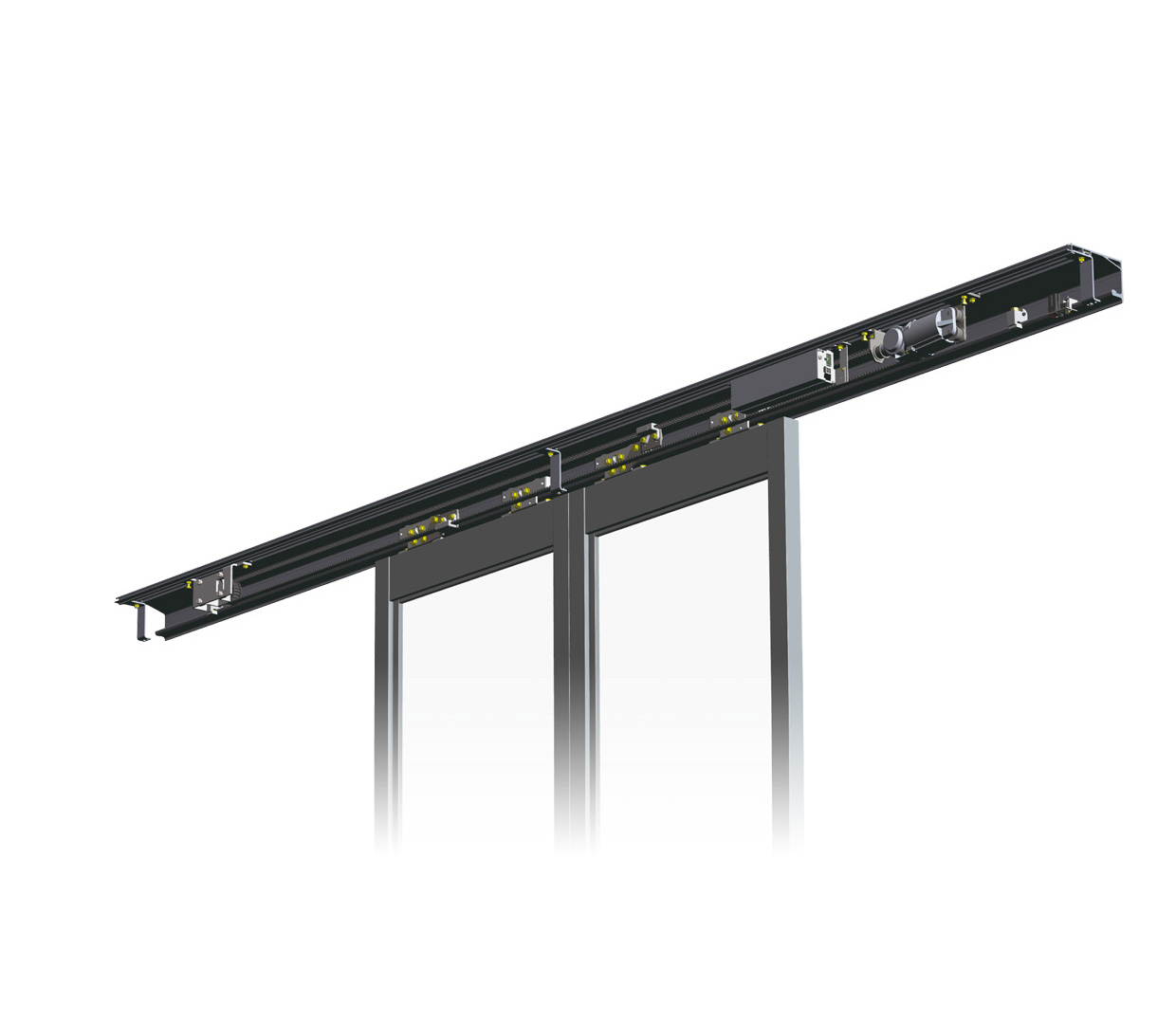

DSN-60/75/150S-HM

Slim operator for Sliding doors

Summary

Aesthetic slim design which enhances the value of the entrance.

Features

1) Slim design:

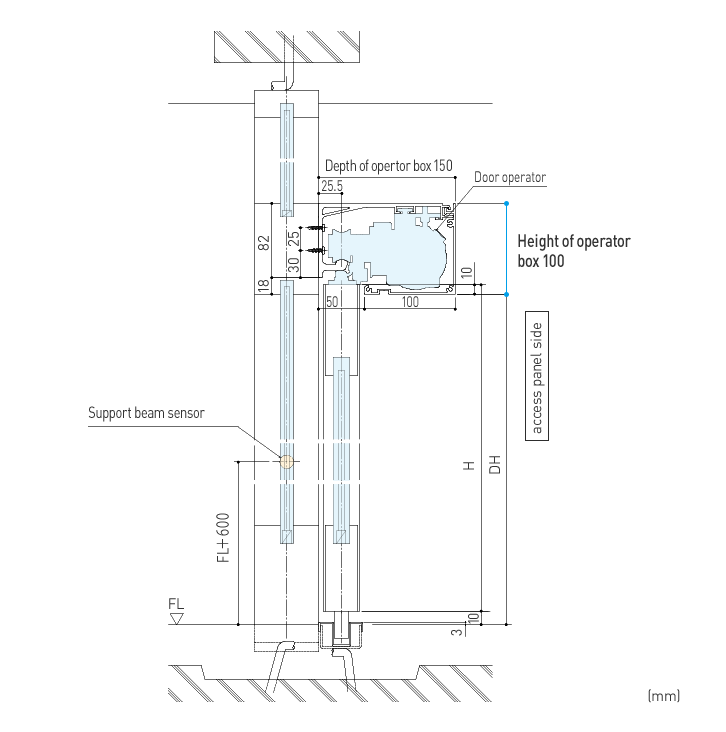

Height of the header is only 100mm, and can be integrated to the design of various entrances such as office building, shopping mall, etc.
2) High performance:
NET-DS series is adopted as an operating unit which provides a high level of safety and reliability with optimal functionality.

Spec

Product Name
DSN-60S-HMDSN-75S-HMDSN-150S-HM
Network Support
Door Operator Type
DS-60DS-75DS-150
Door Type
Bi-partingSingleBi-partingSingleBi-partingSingle
Applicable Door Mass (kg) x Door Quantity *1
60×275×185×2100×1120×2120×1
Applicable Door Area : DW x DH (m):DW×DH(㎡)
1.82.22.62.83.03.3
Applicable Door Width : DW (mm)
650〜2500
Ratio of Door Height / Width : DH / DW *2
max. 4.0
Power Supply
230VAC+6/-10% 50/60Hz
Note: With transformer specified by NABCO
Wind Load (m/sec)
15 m/s
*1 The door should be used under conditions where the door unit weight will not exceed the value defined in the specification. If the weight exceeds the specification, malfunction or accident will occur.
*2 The unit door aspect ratio should not exceed the value defined in the specification. If the aspect ratio exceeds the specification, the specified performance will be impaired.

Automatic door units with this logotype support the network system using CAN communication.
NABCO is the first door brand that adopted the internationally standardized network technology using CAN communication into automatic door systems.
Information networking among not only automatic door units but also optional devices, such as sensors and electric locks, has improved security and reliability, and we propose the best maintenance plan using the maintenance data that we have accumulated and managed.

Slim Header Sliding Door

Product Name Operating
Method
Notes
V-60SL-HM Bi-parting
Single
For lightweight doors
V-85SL-HM Bi-parting
Single
For middleweight doors
V-150SL-HM Bi-parting
Single
For heavy doors
DSN-60S-HM Bi-parting
Single
Slim operator for lightweight doors
DSN-75S-HM Bi-parting
Single
Slim operator for middleweight doors
DSN-150S-HM Bi-parting
Single
Slim operator for heavy doors
DS-60S-EN(HM) Bi-parting
Single
Slim operator for lightweight doors (CE)
DS-75S-EN(HM) Bi-parting
Single
Slim operator for middleweight doors (CE)
DS-150S-EN(HM) Bi-parting
Single
Slim operator for heavy doors (CE)
