V-500SL

Operating unit that can smoothly open/close large and heavy doors at plants

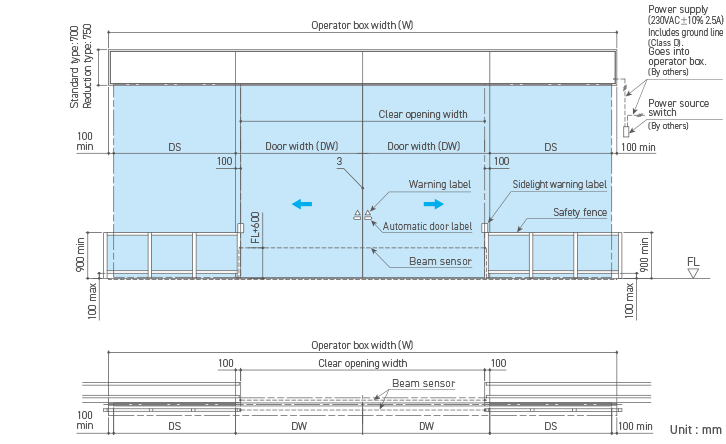

Bi-parting

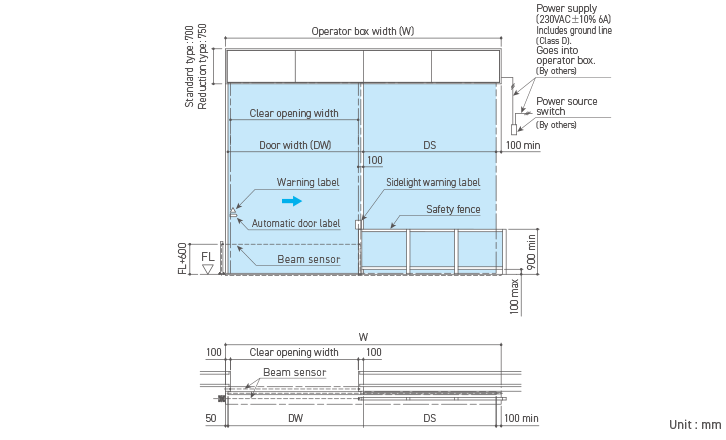

Single

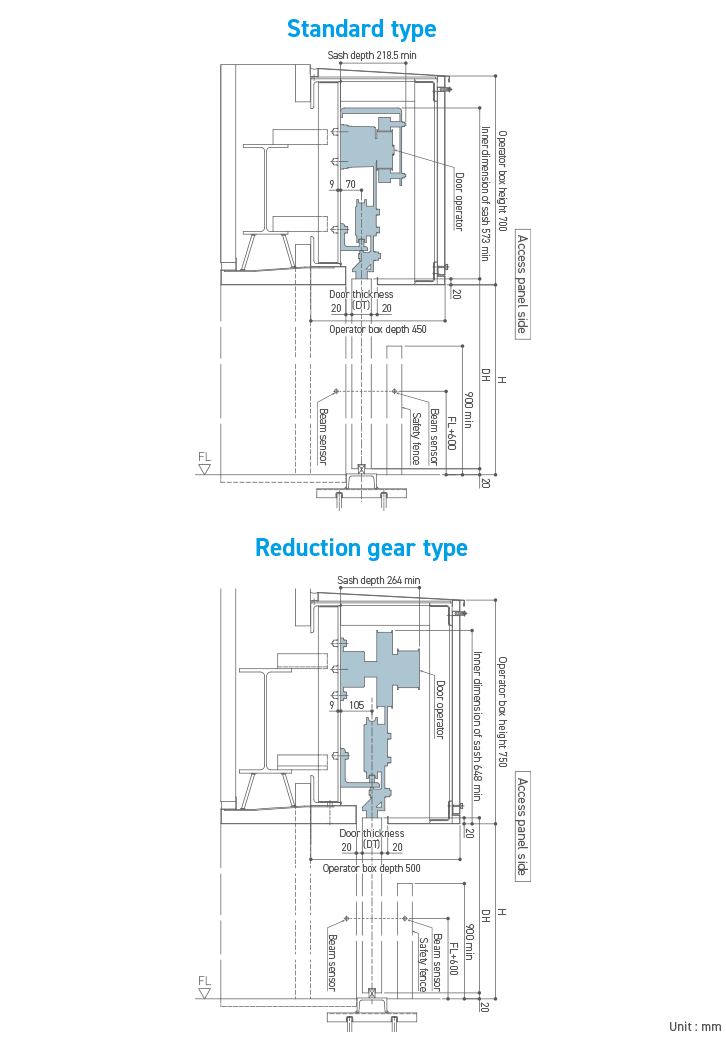

Section

Summary
Features
Spec

Summary

The operating unit can open/close large and heavy doors at plants at high speed. It is suitable for bi-parting doors of up to 500 kg per door and single sliding doors of up to 1000 kg.

Features

1) The main controller incorporates a microcomputer with sophisticated control software.
2) Its high-speed operation and quick reversals enable smooth passage.
3) Auxiliary reduction gears enable the operation of doors up to 2000 kg (single sliding).

Contact us

Downloads

Spec

You can scroll.

Product name: V-500SL

Door operator type: V-500

Applicable operator: Standard type (Elevation）; Reduction gear type (Elevation）

Door type: Bi-parting; Single; Bi-parting; Single

Applicable door mass (kg) x door quantity ^*1: 500×2; 1000×1; 1000×2; 2000×1

Applicable door width: DW (mm): 3100; 6100; 6100; 10100

Required power capacity: 200VAC ± 10% 50/60Hz 6A ^*2

Door operation speed (m/sec): 0.1– 0.5 ^*3; 0.1– 0.3 ^*3

Electronic lock: Industrial environmaent (IEC/JIS C 61000-6-2)

Relative humidity: 20 to 85% RH (no icing or condensation)

Applicable door hight: DH (mm): 4500

Ambient temperature: -10 to 50℃

*1 The door should be used under conditions where the door unit weight will not exceed the value defined in the specification. If the weight exceeds the specification, malfunction or accident will occur.
*2 With a transformer specified by NABCO
*3 The speed varies according to the door weight or site environment.
