You can choose proper sensor type by its place
Transom mount
| Product Name | Detection Area (MAX) | Mounting Height (MAX) | Network Support |
|---|---|---|---|
| NSW-A01 N Search W | 5m in width x 4m in depth (fixed regardless of the mount height) | 3.5m |  |
| NS-A01 N Search | W 3.05m x D 2.09m (Mounting height 2.5m) | 4.0m as activation sensor / 3.5m as protective sensor | |
| MS-01 M Search | W 2.9m×D 1.8m（ Mounting height 2.2m） | 4.0m | |
| OA-220CN T | W3.79m× H2.6m | 3.0m |
Transom embedded
| Product Name | Detection Area (MAX) | Mounting Height (MAX) | Network Support |
|---|---|---|---|
| NSW-A02 N Search W | 5m in width x 4m in depth (fixed regardless of the mount height) | 3.5m | |
| NSW-A03 N Search W | 5m in width x 4m in depth (fixed regardless of the mount height) | 3.5m | |
| NS-A02 N Search | W 3.05m x D 2.09m (Mounting height 2.5m) | 4.0m as activation sensor / 3.5m as protective sensor | |
| NS-A03 N Search | W 3.05m x D 2.09m (Mounting height 2.5m) | 4.0m as activation sensor / 3.5m as protective sensor | |
| MS-02 M Search | W 2.9m×D 1.8m（ Mounting height 2.2m） | 4.0m | |
| MS-03 M Search | W 2.9m×D 1.8m（ Mounting height 2.2m） | 4.0m |
Ceiling mount
| Product Name | Detection Area (MAX) | Mounting Height (MAX) | Network Support |
|---|---|---|---|
| NS-A04 N Search | W 3.04m x D 2.37m (Mounting height 3.0m) | 4.0m as activation sensor / 4.0m as protective sensor | |
Support sensor
| Product Name | Detection Area (MAX) | Mounting Height (MAX) | Network Support |
|---|---|---|---|
| NP-01/NP-01L | FL+600mm | |
|
| NZ-1 Ultrasonic Sensor | φ1300mm<br>φ1500mm<br>φ1500mm | 3.0m<br>2.5m<br>2.5m |

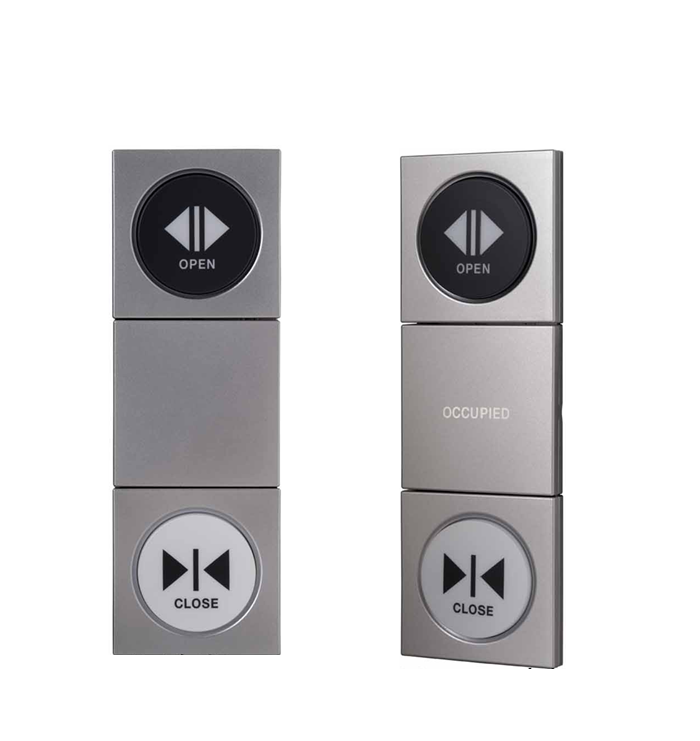

Pillar/Wall mount
| Product Name | Detection Area (MAX) | Mounting Height (MAX) | Network Support |
|---|---|---|---|
| OAH-100K No-touch Switch | |||
| NH-101 Side-beam Sensor | 1.5m | FL+1000mm | |
| HDS-4P Push Button Switch |
Foot switch
| Product Name | Detection Area (MAX) | Mounting Height (MAX) | Network Support |
|---|---|---|---|
| FT-A30 Foot Switch |
Automatic door units with this logotype support the network system using CAN communication.
NABCO is the first door brand that adopted the internationally standardized network technology using CAN communication into automatic door systems.
Information networking among not only automatic door units but also optional devices, such as sensors and electric locks, has improved security and reliability, and we propose the best maintenance plan using the maintenance data that we have accumulated and managed.
