CS2A Series

Two-wing revolving door

Reference

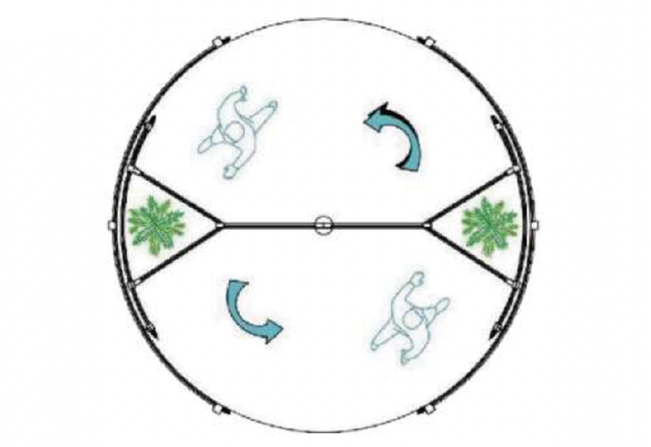

CS2A-H

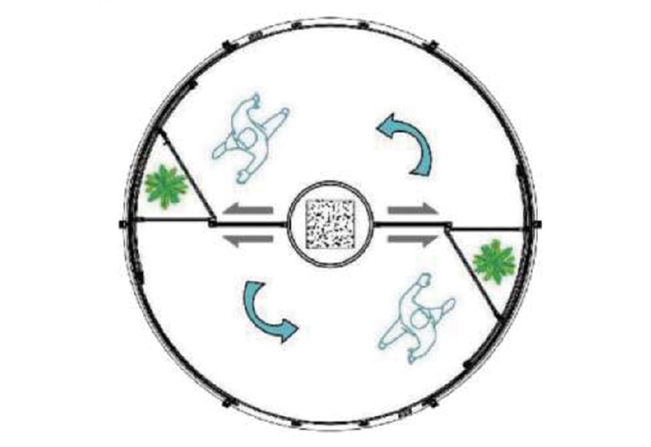

CS2A-W

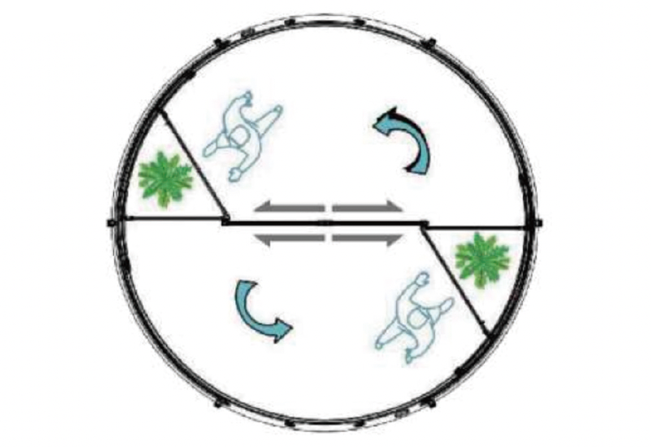

CS2A-Z

Summary
Features
Spec

Summary

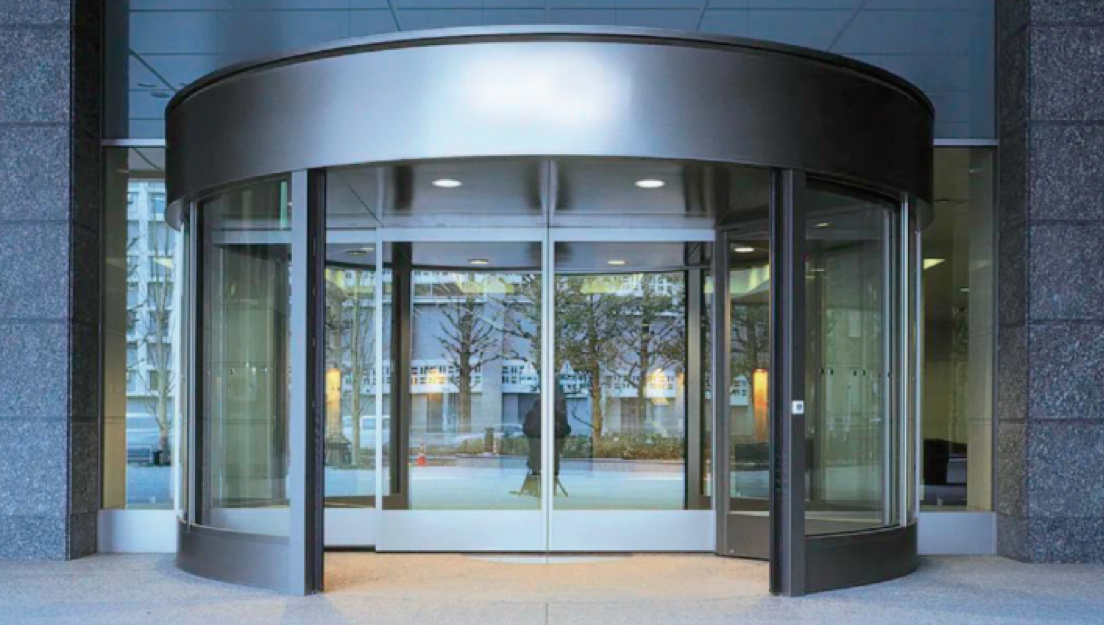

The CS2A series is the star of the two-wing revolving door, which is very safe and convenient.

Features

1) Reinforced aluminum frame with high strength and stability.
2) Energy-saving, with low noise, balanced operation, high safety, and a long service life (design service life: 20 years).
3) Equipped with an imported digital program control system for reliable operation.
4) Multi-security functions include anti-clash, anti-collision, and anti-pinch mechanisms.
5) Two operation modes (auto revolving and auto sliding) are selectable.
6) In the event of a power failure or emergency, the door in the fire passage can open automatically, allowing for immediate evacuation.

Contact us

Downloads

Spec

You can scroll.

Product name: CS2A-H; CS2A-W; CS2A-Z

Clear opening width DW (mm): 1224~2224; 1624~2224; 1280~1680

Power supply: AC220V·16A

Diameter (mm): 2800~4800; 3600~4800; 2800~3600

Passage height (mm): 2200~3000; 2200~3000; 2200~3000

Canopy height (mm): 300~600; 550~600; 300~600

Revolving speed: Standard revolving speed Standard 3rpm (3-4rpm)
In case of opening/closing at low revolving speed Standard 2rpm (2-3rpm)

Revolving direction: Anti-clockwise

Safety protection device: Door body sensor：Position anti-pinch sensor
Auxiliary sensor：Emergency stop device
Revolving stop device：Low-speed revolving switch
Rubber anti-pinch sensor：Sliding door switch (label and doorbell purchased separately)

Maximum bearable wind speed (H=2200mm): When the revolving door is in service: <25m/s
When the sliding door is in service: <15m/s
